3.7kw Metalworking Spindle kit 800Hz & Inverter & 150w Pump(400Hz-12000rpm,220v)
Product details
| Management number | 222107688 | Release Date | 2026/05/04 | List Price | US$1,138.31 | Model Number | 222107688 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

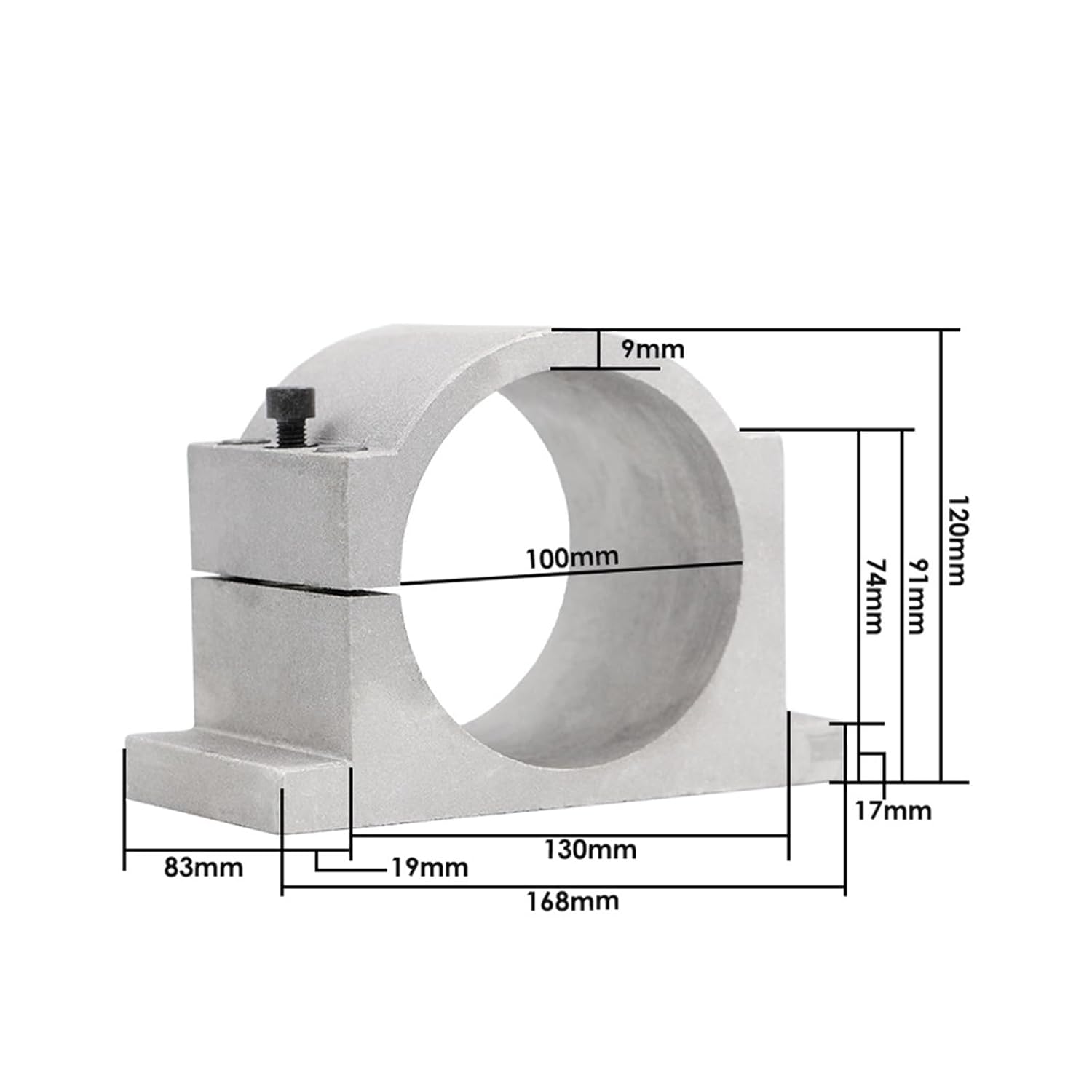

Rotary Shafts1&220vAC37kw spindle motor water-cooled 800Hz poles 4 diameter 100mm1 220V 37KW inverter 1000Hz1 100mm spindle support1 150w water pump1.5m water pipe1 ER20 high precision chuck 4 6 8 10 12 1/2 1/4 1/8)Size: 100x289.5mm (midbody diameter: 100mmx length: 289.5mm)Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.Cooling method: water coolingPower: 3.7kwVoltage: 220V/380VCurrent: 17A/8AFrequency: 800HzSpeed: 6000-24000rpm- Poles: 4Runout: less than 0.01mmDiameter(mm):100Bearing Type: 2 x 7005 TQP4 & 2 x 7003 TQ P44 ceramic ball bearings fully sealed angular contact bearingsChuck ER20Clamping knife diameter 13mm12mm12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)Water-cooled ER20 chuck block
- Rotary Shafts
| Item Weight | 5.4 ounces |
|---|---|
| Manufacturer | PHTJALIF |
| Item model number | PHTJALIF |
| Package Dimensions | 4.33 x 4.33 x 4.33 inches |
